Application
Application:

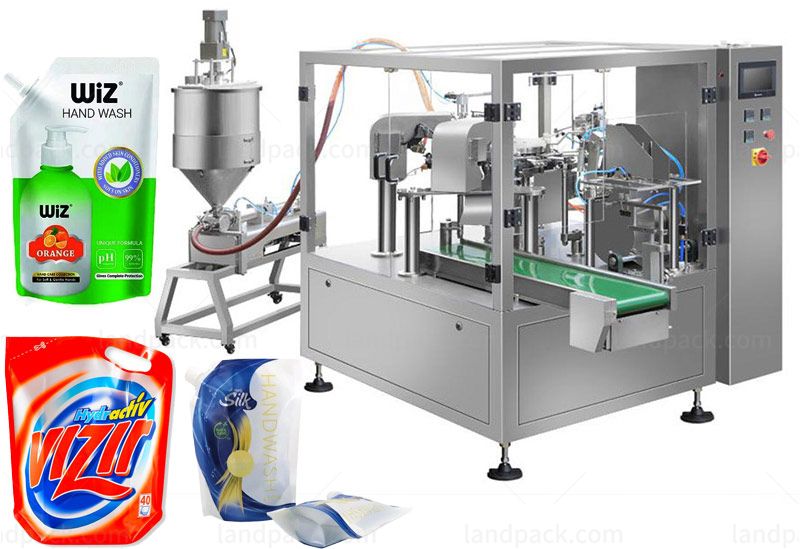

Liquid: Detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc
Thick liquid: Chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.
Pouch Type: All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout ect.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Features:
Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button.
Single shaft and the CAM design: packaging speed faster; more stable operation ; maintenance easier and reduce defective rate.
Modular heating, temperature control more accurate, heating fault have alarm prompt.
Advanced design idea, reduce the material loss, ensure the stability of equipment operation, extend the operating life of the equipment.
Simple and convenient operation, adopts the advanced PLC+POD (touch screen) electric control system and man-machine interface.
Machine have wide packaging range , it can packaging : liquid, paste, granule, powder, solid various bagging materials only. According to the different material with different metering device.
Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quality and grade of the product.
Specifications:
| Model | LD-8200/LD-8250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| size | W：70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60bag/min（speed is determined by the product filling quantity） |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |

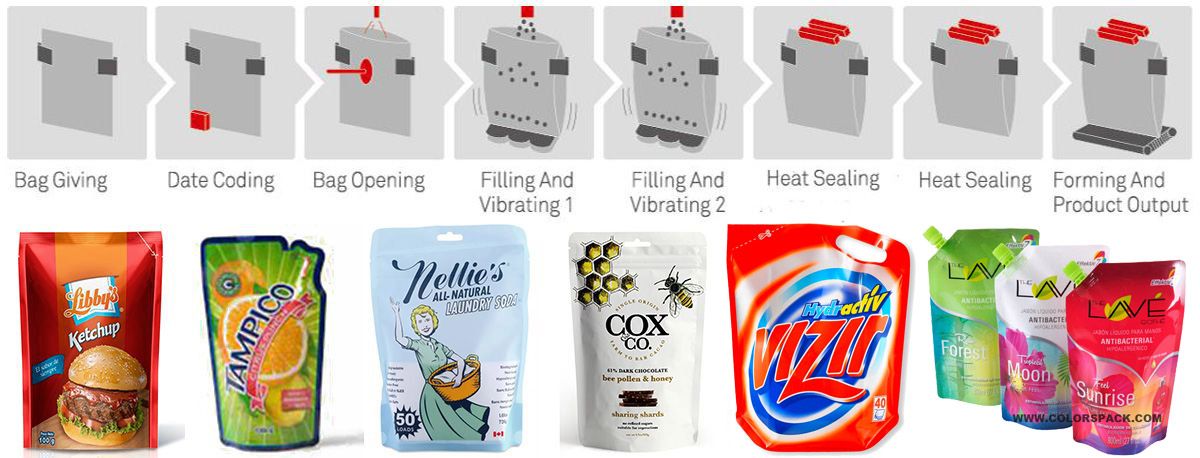

| Work flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
Optional Devices:
1.Code printer;
2. PLC control system;
3. bag opening device;
4. Vibration device;
5. Cylinder;
6. electromagnetic valve;
7. Temperature controller;
8.Vacuum pump;
9. Inverter;
10. Output system
