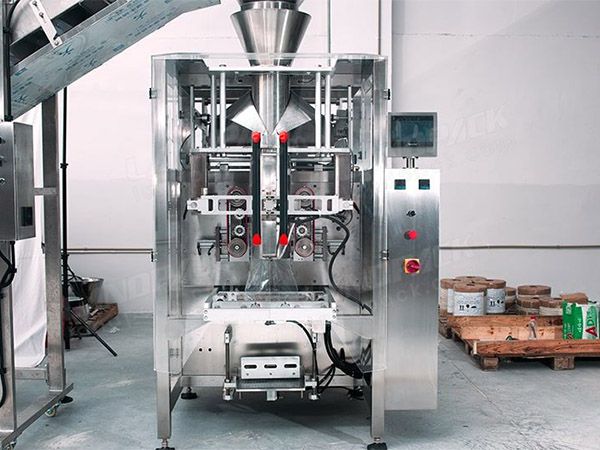

Model: LD-420B
Application: noodles, chowmein, tea leaves, dumplings, candy, jelly, bean sprouts.
Model: LD-420B
Application: noodles, chowmein, tea leaves, dumplings, candy, jelly, bean sprouts.
Application
Application:
Fragile material: Chips, shrimp slices, crispy rice.
Uneasy measuring material: noodles, chowmein, tea leaves, dumplings, candy, jelly, bean sprouts.
The pouch bag into a big bag of drugs, commodities, daily use, food, small hardware, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Features:
New design with perfect fashion, more reasonable structure, more advanced technology.
Imported PLC control system, colorful touch screen, easy operation, intuitionistic efficiency.
Standard positioning with imported servo film transporting system and mark sensor.
Superexcellent capability for complete machine, perfect packaging.
With auto warning protection function to minimize loss.
Various kinds of bags, could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
Specifcations:
Model | LD-420B | LD-520B | LD-720B |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
Packaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml |
