Application
Application:

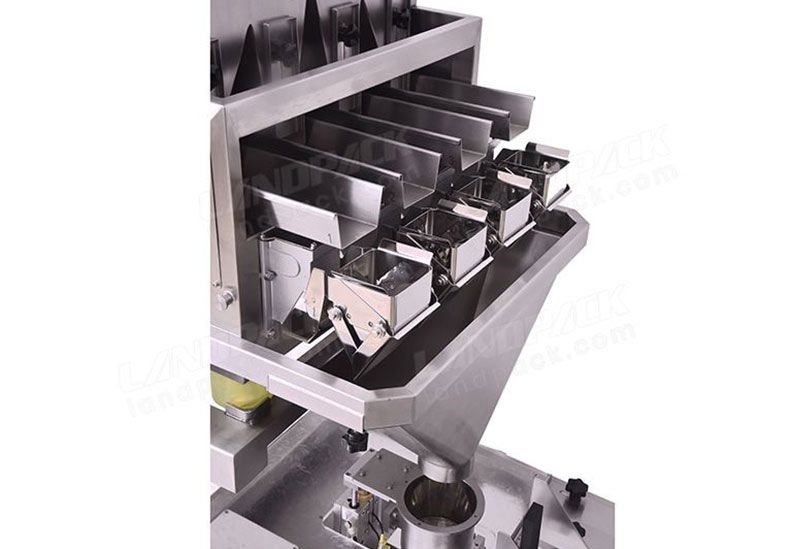

It can auto-finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be 3-side-seal, gusseted pouch, standup pouch no-zip-lock.
Suitable for small granule material, such as crystal monosodium glutamate, seasoning, washing powder, pesticides, chemicals, sugar, feed and other small granule material automatic packing.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Features:
Machine is specially developed for all kinds of composite pre-made bags.
PLC & HMI Control, easy for parameter setting and troubleshooting.
Different pouch size adaption, simple adjustment without tools.
Intelligent temperature controlling configuration, ensure artistic and neat sealing.
Pouch saving design, no completely opened pouch, no filling and sealing
Compatible programs of powder, granule or liquid closing, easy for different products switching.
Machine stopped when the door is opened.
Specifications:
Model: LD-200AX
Bag Material: Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag Type: 3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type: N/A
Size Range: 70mm≤W≤150mm, 100mm≤L≤200mm
Speed: 0~26bags/min
Sealing Type: Straight grain, the pitch is 1mm (Optional reticulate)
Sealing Width: 10mm (5-20mm can be customized)
Voltage: 220V, Single-phase, 50/60HZ, 1KW
Air Pressure: 0.65Mpa
Air Consumption: 0.2m³/min (Standard machine, no additional function)
Body Dimension: 1080*535*1010mm
Packing Dimension: 1240*670*1320mm (Export non-fumigation wooden case)
Optional Devices:
Pouch zipper opening function.
Gusset pouch opening function.
Gas flush functions to keep the products fresh and avoid them broken.
Air/Nitrogen Inflating, Air deflating function.
Vacuum function to keep the products fresh and reduce the package space.
The bag tapper vibrating compacting function help products drop to the bag bottom part and enhance packaging density.
Grip seal to avoid powders coming out during filling.
Dedusting device to enable a clean packaging environment and ensure the quality of sealing.
Different types of code printing functions, such as hot stamp ribbon printers, inkjet printers, thermal transfer printers and so on.
