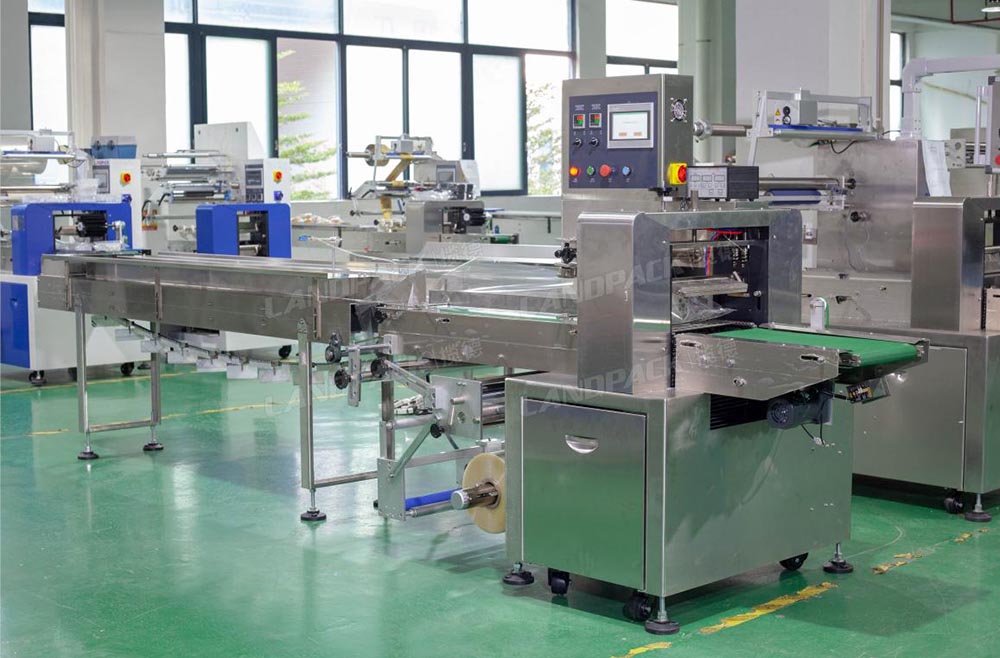

The pillow packaging machine is a continuous packaging machine for a variety of specifications for food and non -food packaging. It can not only be used for packaging without trademark packaging materials, but also uses roll materials printed with trademark patterns for high -speed packaging. In packaging production, due to the effects of errors, stretching and mechanical transmission such as the positioning of the positioning of the packaging material, the stretching of the packaging material, and the mechanical transmission, the predetermined part of the packaging material may deviate from the correct position and cause errors. In order to eliminate errors and achieve the correct sealing, packaging design must consider automatic positioning problems, and most of this problem is to complete the continuous photoelectric automatic positioning system design according to the positioning mark of the packaging material. The continuous photoelectric positioning system is divided into advance, braking, and two transmission system synchronization.
The main performance characteristics of the noodle packaging machine:
1. Three servo control, the bag length is set, no empty bag, one step is in place, saving time and membrane.
2. Color touch screen control, the parameter settings are convenient and fast, and 100 types of packaging parameters can be stored.
3. The fault self -diagnosis function, the fault display is clear at a glance.
4. High -sensitivity photoelectric eye -eyed label tracking, mathematical input sealing position, making the sealing position more accurate.
5. Temperature independent PID control is better suitable for various packaging materials.
6. Positioning the downtime, not sticking to the knife, no waste of the envelope.
7. The transmission system is simple, more reliable at work, and more convenient maintenance.
8. Cut into the product automatically reversed.
9. No packaging film, automatic stop.

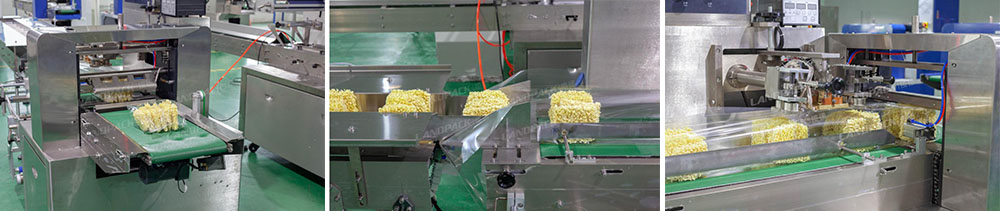

10. Can achieve flexible packaging as needed, that is, automatically detect product length, automatically change the length of the packaging film without setting any parameters. Automatic noodle noodle pillow packaging machine
Optional device: code machine, automatic punching machine and other accessories
A variety of cutting forms: straight shape, ripple shape, connection, etc.
A variety of seal forms: mesh pattern, straight lines, vertical lines, patterns
The overall design of the mechanical structure is simple, reasonable, convenient to operate, and convenient adjustment.
Using PLC, inverter control, with long and cutting, one step in place to avoid waste of bags,
Human -machine interface, facilitate modification of parameters, fault self -test display system, convenient for maintenance,
Using Remron Fiber Electric Eye, Siemens control components, the signal is stable, making the detection more accurate
Independent temperature control, so that the packaging and sealing effect can reach*state
Most mechanical transmission is used to stabilize the structure of the machine and use future use and maintenance
Machine characteristics:
1 The overall design of the machine structure is simple, reasonable, easy to operate, easy to regulate, and
2 High -speed horizontal sealing device, high sealing speed, clear and beautiful mesh pattern.
3 With automatic positioning parking function
4 Special products can be equipped with safety clutch devices to protect packaging items.
Packaging materials: paper/PE, OPP/AL/PE, etc. Suitable for heating seal packaging materials.
