Application
Application:

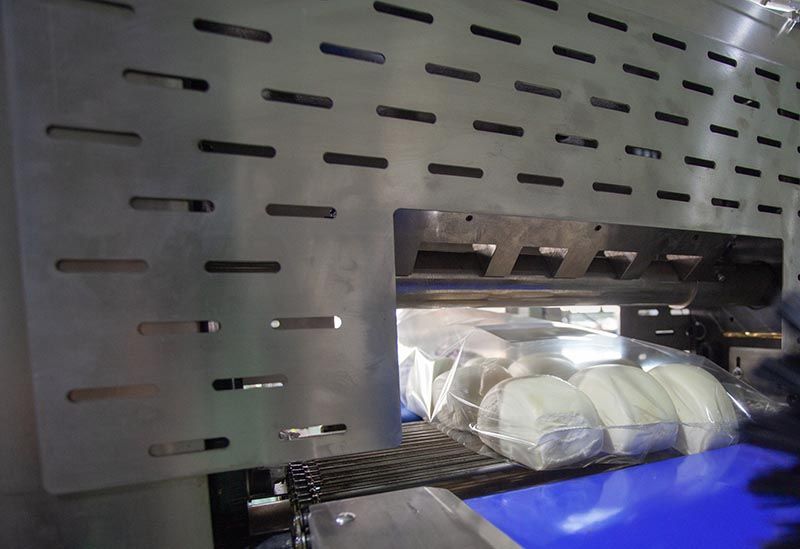

Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Features:
Dual-frequency conversion control, Bag length can be set and cut in one step, saving time and film.
The interface features easy and quick setting and operation
Self failure diagnosis, clear failure display
High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
Temperature independent PID control, more suitable for packaging different materials
Positioned stop function, without sticking knife or wasting film.
The simple driving system, reliable working, convenient maintenance.
All control is realized through software, easy for function adjusting, and technical upgrade.
Specifications:
| Type | LP-680B | LP-800B |
| Film width | Max 680mm | Max780mm |
| Bag length | 150-560mm | 210-650mm |
| Bag width | 100-260mm | 120-350mm |
| Product height | Max.110mm | Max.130mm |
| Film roll diameter | Max.320mm | Max.320mm |
| Packaging rate | 30-150bag/min | 30-150 bags/min |
| Power | 220V50/60Hz 6KW | 220V50/60Hz 6KW |
| Machine size | (L)4800*（W）1200*（H)1700mm | (L)4800*（W）1200*（H)1700mm |
| Machine quality | 1120KG | 1150kg |
| Film material | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP/ Aluminum Coating Film/ Aluminum Film |
Optional Devices:
Belt material conveyor
End sealing drag chain
Auxiliary material feeding device
Material cut prevents the device
Perforating device
Angle folding device
Date printer
Labeling machine
Thermal transfer code printer
Air charging system
Cutting stop
Prevent empty packages.
