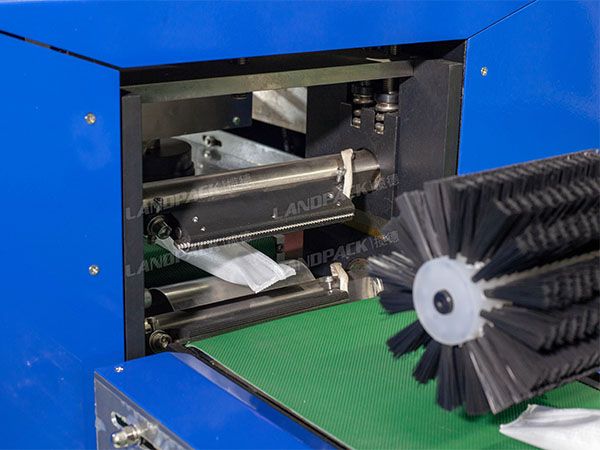

Hardware Pearl Cotton Roll Film Pillow Packing Machine

Model: LP-350X

Application: It is suitable for packaging hardware, heat insulation boards, hinges, door locks and other hardware accessories. EPE roll film is used, and EPE can protect the product well from being scratched.

Hardware Pearl Cotton Roll Film Pillow Packing Machine

Model: LP-350X

Application: It is suitable for packaging hardware, heat insulation boards, hinges, door locks and other hardware accessories. EPE roll film is used, and EPE can protect the product well from being scratched.

  • Application
  • Features
  • Specifications
  • Video

Application

Application:

It is suitable for packaging hardware, heat insulation boards, hinges, door locks, and other hardware accessories. EPE roll film is used, and EPE can protect the product well from being scratched.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

Hardware Pearl Cotton Roll Film Pillow Packing Machine

Features:

Slim body for saving working space, the sanitary design allows to easy clean-up.

An intelligent control system, easy-operation HMI. Color mark tracking.

Belt conveyor without pushers, easy to be integrated with existed production line or conveyor.

Automatic stop function without product can avoid wasting packing film.

The feed position can be randomly adjusted and easily operated.

Multi-axis full servo-control, simple operation, and stable function.

High control accuracy and less power dissipation.

Specifcations:

ModelLP-350X
Production capacity
40-230 bags/min
Diameter of film roll
maximum 320mm
Packaging film width
the widest 350mm
Outer bag size
the longest 330mm widest 160mm product packaging thickness Max.35mm
Air pressure
0.5-0.7Mpa
Machine noise
less than 80db(A) decibel
Rated frequency
50Hz
Rated voltage
AC220V
Transmission power
4.2Kw
Heating power
2.6 Kw
Total weight of the machine
550 Kg
Machine size
total length 4020mm* total width 720mm* total height 1320mm

Video:
