High Precision Multihead Weigher Dry Fruit Packing Machine

Model: LD-420A

Suitable for various kinds of dry fruit, such as raisins, dried plums, dried strawberries, dried blueberries, dried lemons, etc.

High Precision Multihead Weigher Dry Fruit Packing Machine

Model: LD-420A

Suitable for various kinds of dry fruit, such as raisins, dried plums, dried strawberries, dried blueberries, dried lemons, etc.

  • Application
  • Features
  • Specifications
  • Video

Application

Application:

Suitable for various kinds of dry fruit, such as raisins, dried plums, dried strawberries, dried blueberries, dried lemons, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

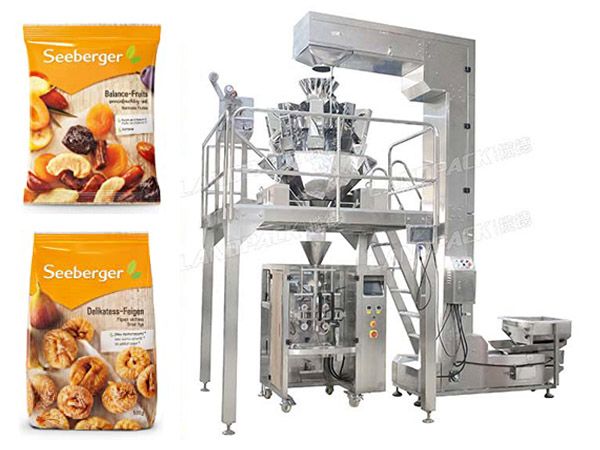

High Precision Multihead Weigher Dry Fruit Packing Machine

Features:

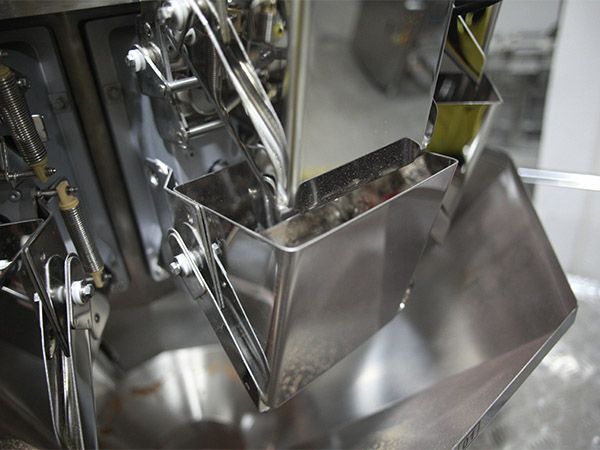

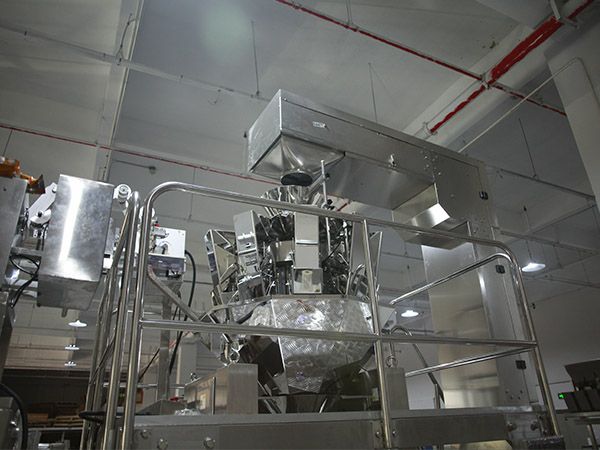

Multi-head combined weigher, improve metering speed and accuracy.

7inch touch screen, easy operation, and multiple languages for choice.

Imported PLC system, machine performance is stable and easy for parameters adjusting.

With a memory function for storage ten sets of parameters. Easy to change packing product.

Separate PID temperature controller, suitable for various packing materials.

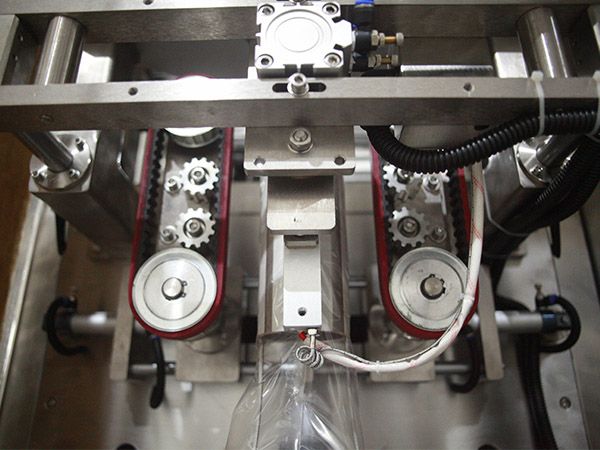

Multi-union roll film pulling system makes film run more smooth.

Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

Sophisticated sealing framework achieves the consistency of bag sealing and cutting.

Machine automatically finishes the process of filling, metering, bag forming, date printing, sealing, and packing.

Low loss, labor-saving, easy for operation and maintenance.

Specifcations:

ModelLD-420LD-520LD-720LD-900LD-1050LD-1200
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Packaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L
