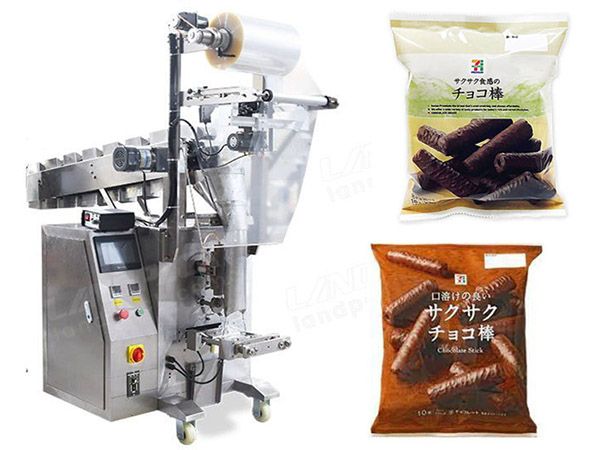

Low Cost Semi Automatic Chocolate Bars VFFS Small Sachet Packing Machine

Model: LD-320B

Application: Suitable for packaging small chocolate bars of different shapes, chocolate beans, chocolate candies, etc.

Low Cost Semi Automatic Chocolate Bars VFFS Small Sachet Packing Machine

Model: LD-320B

Application: Suitable for packaging small chocolate bars of different shapes, chocolate beans, chocolate candies, etc.

  • Application
  • Features
  • Specifications
  • Video

Application

Application:

Suitable for packaging small chocolate bars of different shapes, chocolate beans, chocolate candies, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

Low Cost Semi Automatic Chocolate Bars VFFS Small Sachet Packing Machine

Features:

Double frequency converter control, the bag length can be set and cut, no need to adjust the air, the humanized operation automatically prompts, saving time and film;

The main control circuit adopts imported single-chip microcomputer, man-machine interface, frequency conversion control, convenient and quick parameter setting, centralized operation and intuitive operation, fully realize humanized automatic operation control;

The packaging speed and bag length are controlled by double frequency conversion, digital sealing and cutting position input, sealing and cutting position is accurate, beautiful, and firm;

The high-sensitivity electric eye automatically and accurately track;

Digital fault self-diagnosis function, fault diagnosis at a glance;

Specifcations:

TypeLD-320BLD-380B
Film Width120-320mm180-380mm
Bag Length50-200mm60-280mm
Bag Width50-150mm60-180mm
Range of Measurement    50-500ml50-570ml
Film Roll DiameterMax.320mmMax.320mm
Packaging Rate35-70bag/min35-70bag/min
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine Size(L*W*H)970*680*1950mm1100*800*2150mm
Machine Quality300KG450KG
Optional device1.Date Printing,2.Hole Punching Device,3.Linking bag device,4.Air-filling Device,5.Tear Notch Device

Video:
